Maintaining optimal tire pressure is paramount for safety, fuel efficiency, and the longevity of your vehicle’s tires. However, relying solely on visual inspection is insufficient; a properly functioning Tire Pressure Monitoring System (TPMS) is crucial for proactive tire pressure management. This system, increasingly standard across modern vehicles, provides invaluable real-time data, alerting the driver to potentially dangerous pressure discrepancies. Understanding how to service your TPMS is not only preventative maintenance but also a significant factor in ensuring both driver and passenger safety. Therefore, this comprehensive guide will elucidate the key aspects of TPMS servicing, encompassing both preventative measures and troubleshooting common issues. Furthermore, we’ll explore the nuances of sensor replacement and recalibration, empowering you to maintain optimal tire pressure and maximize the lifespan of your vehicle’s tires. This detailed approach will empower you to confidently address TPMS-related concerns, contributing to a safer and more efficient driving experience. Ignoring a malfunctioning TPMS can lead to costly tire damage, reduced fuel economy, and ultimately, compromise the safety of your vehicle. Hence, this guide serves as an indispensable resource for proactive vehicle maintenance. Regular attention to your TPMS is a small investment with significant returns in terms of vehicle performance, longevity, and your overall peace of mind while driving.
Firstly, preventative maintenance is key to a consistently reliable TPMS. Regularly checking your tire pressure using a reliable gauge, independent of the TPMS, is an essential step. This allows for early detection of slow leaks or gradual pressure loss that might not immediately trigger the TPMS warning light. Moreover, it’s crucial to visually inspect your tires for any signs of damage, such as punctures, cuts, or embedded objects. These visual checks, in conjunction with regular pressure checks, allow for early identification of potential problems. Consequently, addressing these issues promptly prevents further complications. In addition to these visual inspections, familiarize yourself with your vehicle’s TPMS warning light; understanding its indicators is crucial for rapid response to potential tire pressure problems. Remember, the warning light only illuminates once a significant pressure discrepancy is detected; proactive monitoring prevents reaching this critical point. Furthermore, when rotating your tires, remember to carefully note the positions of the sensors. Incorrect sensor placement can lead to inaccurate readings and subsequent warnings. Finally, keeping your TPMS sensors clean will significantly improve their reliability. Accumulated dirt and grime can interfere with sensor functionality; therefore, regular cleaning using a soft brush and mild detergent, followed by thorough drying, is a simple yet effective measure. These proactive steps are fundamental to extending the life of your TPMS and maintaining optimum tire pressure.
Nevertheless, even with preventative maintenance, TPMS issues can arise. If the TPMS warning light illuminates, it’s crucial to understand the underlying cause. Initially, check your tire pressure using a reliable gauge. If the pressure is indeed low, inflate the tire accordingly and monitor the warning light; often, a simple reinflation resolves the issue. However, if the warning light persists despite properly inflated tires, the problem could stem from a faulty sensor or a malfunctioning TPMS module. In such instances, professional diagnosis is necessary. A qualified mechanic can utilize specialized diagnostic tools to pinpoint the precise source of the malfunction. Subsequently, they can recommend the appropriate repair or replacement. Specifically, damaged or failing sensors may require replacement, which often involves accessing the valve stem and employing specialized tools. Furthermore, a malfunctioning TPMS module itself may need replacement, necessitating the expertise of a skilled technician. Remember, attempting to repair complex TPMS components yourself could void your vehicle’s warranty or even lead to further damage. Therefore, seeking professional assistance is crucial when confronted with persistent TPMS issues, ensuring the continued reliable function of this critical safety system. Consequently, investing in professional service guarantees safe and efficient driving, saving you time, money, and potential safety hazards. Properly maintaining your TPMS ultimately contributes to a smoother, safer, and more economical driving experience.
Understanding Your Tire Pressure Monitoring System (TPMS)
Direct vs. Indirect TPMS
Before diving into servicing, let’s clarify the two main types of Tire Pressure Monitoring Systems (TPMS): direct and indirect. Understanding the type in your vehicle is crucial for effective maintenance. Direct TPMS uses individual pressure sensors located within each tire. These sensors measure pressure and temperature directly and transmit this data wirelessly to a receiver in your vehicle. The receiver then processes the information and alerts you if a tire is under-inflated. This provides highly accurate pressure readings and immediate alerts. Think of it like having a tiny, dedicated weather station inside each tire, constantly reporting back to your car’s onboard computer.
Indirect TPMS, on the other hand, doesn’t rely on individual sensors in each tire. Instead, it uses the Anti-lock Braking System (ABS) wheel speed sensors to infer tire pressure. The system compares the rotational speed of each wheel; a difference in speed (caused by a lower-pressure, smaller-diameter tire) triggers a low-pressure warning. While less precise than direct TPMS and potentially slower to detect minor pressure drops, indirect systems are generally less expensive to implement. They rely on the existing ABS sensors, so there are no additional sensors to install in the tires themselves.
Knowing which system your car uses will influence how you approach servicing. Direct TPMS requires specific tools and procedures to access and potentially replace individual sensors. Indirect TPMS, while less complex to service, often requires a tire pressure reset procedure if tires have been changed or serviced. Your owner’s manual will clearly indicate the type of TPMS installed in your vehicle, and understanding this is the first step toward effective maintenance.
Sensor Location and Functionality
In direct TPMS systems, the sensors are typically housed within the valve stem of each tire, or sometimes integrated into the wheel itself. These sensors are robust, designed to withstand the rigors of driving, but they are delicate components nonetheless. They contain a battery, a pressure sensor, a temperature sensor, and a radio transmitter all contained in a small package. The battery life of these sensors typically ranges from five to ten years, after which they may need to be replaced. Once the battery runs out, the sensor will no longer transmit data, rendering the system inactive for that particular tire. The sensors continuously monitor the pressure and temperature within the tire and transmit data to the vehicle’s receiver, typically several times per second. This constant stream of information allows for immediate and accurate pressure readings.
| TPMS Type | Sensor Location | Data Transmitted | Accuracy | Maintenance |
|---|---|---|---|---|
| Direct | Inside valve stem or wheel | Pressure & Temperature | High | Sensor replacement (battery life limited) |
| Indirect | Utilizes ABS wheel speed sensors | Wheel speed variations | Lower | System reset after tire changes |
Understanding TPMS Warning Lights
Your vehicle’s dashboard features a TPMS warning light, usually depicted as a tire with an exclamation mark inside. This light illuminates when one or more tires fall below a pre-set pressure threshold. However, note that the light may also illuminate if there is a malfunction within the system itself. This means a faulty sensor, a low battery in a sensor, or even a problem with the receiver module. Therefore, it’s crucial to not only inflate your tires but also to investigate the underlying cause if the light remains illuminated after inflation. A diagnostic scan tool can be used to further investigate system faults, identifying individual sensor problems.
Assessing TPMS Malfunctions and Warning Lights
Understanding Your Tire Pressure Monitoring System (TPMS)
Before diving into troubleshooting, it’s helpful to understand how your TPMS works. Most modern vehicles use indirect TPMS, which relies on the wheel speed sensors already present in your anti-lock braking system (ABS). By comparing the rotational speeds of each wheel, the system can indirectly infer pressure changes. If one wheel rotates slower than the others, it suggests lower tire pressure in that wheel. Direct TPMS, on the other hand, uses individual sensors within each tire to directly measure pressure and transmit that data to your vehicle’s computer. This system offers more precise readings. Understanding your vehicle’s TPMS type helps you diagnose issues more effectively.
Troubleshooting TPMS Malfunctions and Warning Lights
A TPMS warning light can be triggered by various issues, ranging from a simple low tire pressure to a more complex sensor malfunction. Let’s break down the common scenarios and how to address them:
Low Tire Pressure
The most frequent cause of a TPMS warning light is, unsurprisingly, low tire pressure. Check your tire pressure using a reliable gauge, ideally a digital one for greater accuracy. Remember to check the pressure when your tires are cold (before driving). Your vehicle’s owner’s manual will specify the recommended tire pressure for your vehicle and tire size. If the pressure is low in one or more tires, inflate them to the correct pressure. The warning light should turn off after you drive a short distance. If it persists, there might be a slow leak requiring attention from a tire professional.
Faulty TPMS Sensors
Direct TPMS systems rely on individual sensors in each tire. These sensors can fail over time due to age, damage (impact from potholes or curbs), or battery depletion (batteries typically last 5-10 years). A malfunctioning sensor will often trigger a consistent warning light, even after inflating the tire to the correct pressure. If this is the case, a professional mechanic can diagnose the faulty sensor and replace it. Sometimes, simply re-seating the sensor on the tire valve stem can resolve intermittent problems.
System Malfunctions
Sometimes, the problem isn’t with the sensors themselves, but with the vehicle’s TPMS receiver or the system’s wiring. This is less common but can cause erratic warning lights or a complete system failure. If you’ve ruled out low pressure and faulty sensors, it’s best to take your vehicle to a mechanic for a proper diagnostic check. They can use specialized equipment to assess the system’s integrity.
Other Causes
Occasionally, other factors can trigger a TPMS warning light. These include recent tire rotations or changes (which sometimes require recalibration of the TPMS), faulty wheel speed sensors (for indirect TPMS systems), or even a blown fuse related to the system. A mechanic can help identify these less common problems.
Troubleshooting Table
| Symptom | Possible Cause | Solution |
|---|---|---|
| Warning light illuminates after driving | Low tire pressure | Check and inflate tires to the correct pressure. |
| Consistent warning light, even with correct pressure | Faulty TPMS sensor | Replace the faulty sensor. |
| Intermittent warning light, no apparent pressure issues | Sensor connection problem or system malfunction | Have the system checked by a mechanic. |
| Warning light after tire rotation | TPMS recalibration needed | Refer to your owner’s manual for recalibration instructions. |
Gathering Necessary Tools and Equipment
1. Basic Hand Tools
Before you begin servicing your tire pressure monitoring system (TPMS), gather the essential hand tools. This typically includes a reliable torque wrench to ensure you tighten lug nuts to the manufacturer’s specified torque. Using the wrong torque can damage your wheels or compromise tire safety. You’ll also need a socket set that includes the correct size for your vehicle’s lug nuts. A good quality jack and jack stands are crucial for safely lifting your vehicle. Remember safety first – always consult your vehicle’s owner’s manual for the proper jacking points to avoid damage to your vehicle’s undercarriage.
2. TPMS-Specific Tools
Depending on the type of TPMS your vehicle uses (direct or indirect), you’ll need specific tools. For direct TPMS (sensors in the valve stem), you might need a TPMS sensor activation tool to register the sensors with the vehicle’s computer after service or replacement. This tool is often specific to the vehicle’s make and model, so checking your vehicle’s service manual for compatibility is crucial. You may also require a valve core removal tool to access the sensor for service. Some advanced TPMS diagnostic tools allow you to read sensor data, identify faulty sensors, and even program new sensors. The cost of these tools can vary widely, so assess your needs before making a purchase. A simple air compressor with a pressure gauge is also essential for properly inflating tires to the recommended pressure.
3. Safety Gear and Other Important Items
While servicing your TPMS might seem straightforward, prioritizing safety is paramount. Always work in a well-ventilated area, especially when dealing with compressed air. Wear safety glasses to protect your eyes from any potential debris or air pressure issues. Gloves are also recommended to protect your hands from dirt and potential cuts or abrasions. A shop rag or clean cloth is handy for wiping away dirt or grease, ensuring a cleaner work environment. A bright work light is invaluable for illuminating the area beneath the vehicle, providing better visibility of the tire and TPMS sensor. Consider using wheel chocks to further secure the vehicle while it’s jacked up. This simple step provides extra stability and reduces the risk of accidental movement during the service procedure. Finally, having your vehicle’s owner’s manual readily accessible will allow you to consult specific instructions, torque specifications, and sensor information tailored to your vehicle. This manual acts as a crucial guide for accurate and safe TPMS maintenance.
| Item | Purpose | Importance |
|---|---|---|
| Safety Glasses | Protect eyes from debris. | Essential for safety |
| Work Gloves | Protect hands from cuts and dirt. | Highly recommended |
| Wheel Chocks | Secure vehicle during jacking. | Crucial for safety |
| Shop Rags | Clean working area. | Helpful for maintaining cleanliness |
| Bright Work Light | Improved visibility under vehicle. | Enhances accuracy and safety |
Checking Tire Pressure and Inflation
Understanding Your Tire Pressure Monitoring System (TPMS)
Before you even think about checking your tire pressure, it’s helpful to understand how your Tire Pressure Monitoring System (TPMS) works. Most modern vehicles are equipped with TPMS, which uses sensors in each tire to constantly monitor pressure. If a tire’s pressure falls below a pre-set threshold, a warning light illuminates on your dashboard. This light is your first clue that something might be amiss, but it’s crucial to remember that it’s not a substitute for regular pressure checks. The TPMS might be faulty or have a low battery. Regular manual checks ensure you’re always aware of your tire’s condition, regardless of the TPMS status.
Locating Your Recommended Tire Pressure
Your vehicle’s recommended tire pressure isn’t a guess; it’s a crucial piece of information designed to optimize safety, handling, and fuel efficiency. You can find this information in several places: your owner’s manual (usually on a sticker inside the driver’s side doorjamb or fuel filler door), a sticker on the driver’s side doorjamb itself, or on the tire sidewall. The recommended pressure is often expressed in PSI (pounds per square inch) and may vary slightly depending on the tire load (e.g., carrying passengers or cargo). Pay close attention to the number specified, as using incorrect pressure can negatively impact your vehicle’s performance and safety.
Gathering Your Tools
To successfully check and inflate your tires, you’ll need a few simple tools. First, you’ll need a reliable tire pressure gauge. Avoid cheap gauges, as they can be inaccurate. Digital gauges are generally preferred for their precision and ease of reading. Secondly, you’ll need a portable air compressor or access to an air pump, whether at a gas station or a service center. Finally, consider bringing a small flashlight, particularly if you’re checking your tires in low light conditions. Having the right tools makes the whole process smoother and more efficient.
The Step-by-Step Guide to Checking and Inflating Your Tires
Checking and inflating your tires is straightforward, but precision is key. First, ensure your vehicle is parked on a level surface. This is vital for accurate pressure readings. Before you begin, allow your tires to cool completely. Driving significantly heats the tires, causing a temporary pressure increase that will give you an inaccurate reading. Let the vehicle sit for at least three hours after driving before you check. Next, use your pressure gauge to check the pressure in each tire. Unscrew the valve cap and press the gauge firmly onto the valve stem. Note the reading on the gauge and compare it to the recommended pressure. If the pressure is low, connect your air compressor or use an air pump to add air gradually. Regularly check the gauge during inflation to avoid over-inflation. Once the pressure reaches the recommended level, remove the air compressor and replace the valve cap. Repeat this process for all four tires. It’s also a good idea to visually inspect your tires while you’re at it, looking for any cuts, bulges, or signs of wear. Keeping a close eye on your tires will prevent more significant issues down the line. Remember to keep a record of when and how often you service your tires; this helps to establish a regular maintenance schedule.
Maintaining Proper Tire Pressure: A Summary
Maintaining correct tire pressure is essential for safety, fuel efficiency, and tire longevity. Regularly checking your tire pressure and inflating them as needed, using the steps and recommendations above, is a small task that can prevent numerous issues.
| Recommended Check Frequency | Consequences of Improper Inflation |
|---|---|
| At least once a month, and before long trips | Reduced fuel economy, uneven tire wear, compromised handling, and increased risk of tire failure. |
Inspecting TPMS Sensors for Damage or Leaks
Visual Inspection of TPMS Sensors
Before you even think about touching a tire, take a moment to visually inspect each sensor. Look for any obvious signs of damage. This includes cracks in the sensor body, especially around the valve stem. Check the valve cap for any signs of impact damage or looseness. A damaged or missing valve cap can lead to leaks. Also, pay close attention to the sensor’s surface. Scratches or gouges aren’t necessarily a cause for alarm, but deep abrasions could compromise the sensor’s integrity and lead to malfunction or failure.
Checking for Leaks with Soap and Water Solution
A simple soap and water solution is a highly effective method for detecting leaks in your TPMS sensors. Mix a few drops of dish soap with water to create a bubbly solution. Apply this mixture liberally to the valve stem and the surrounding area of the sensor. If bubbles start forming, you’ve located a leak. The size and rate of bubble formation can give you an indication of the leak’s severity. Small, slow bubbles might indicate a minor leak that could be addressed with a simple tightening, while rapid, large bubbles usually signal a more serious problem requiring professional attention.
Using a TPMS Sensor Tester
For a more precise and professional diagnosis, invest in a TPMS sensor tester. These tools allow for a direct assessment of sensor functionality and can often identify specific issues, even before any visible damage appears. These testers can check battery voltage, sensor ID, and signal strength, providing crucial information about the sensor’s overall health. Following the manufacturer’s instructions precisely is vital for accurate and safe testing procedures.
Inspecting the Valve Stem
The valve stem is a critical component of the TPMS sensor and is a common point of failure. Examine it closely for any bending, damage, or corrosion. A bent stem can disrupt the seal and cause air leaks. Corrosion can weaken the stem material, increasing the risk of breakage. Make sure the valve core is correctly seated and that the valve cap is securely tightened. A loose valve cap will not only lead to air loss, it’s also a major entry point for contaminants that could harm the sensor.
Understanding Sensor Location and Accessibility
The location and accessibility of the TPMS sensor can significantly impact the inspection process. On some vehicles, sensors are relatively easy to reach. On others, they may be situated in difficult-to-access areas requiring the use of specialized tools or even removal of the tire. Before you attempt any inspection or repair, it’s crucial to familiarize yourself with your vehicle’s specific sensor locations. Consult your owner’s manual or a reliable online resource to locate and understand the intricacies of your vehicle’s TPMS system. Knowing the exact sensor locations can save you time and prevent unnecessary damage. Remember, some wheel designs require specialized tools or even professional assistance for sensor access, particularly during tire rotations or changes. Attempting to access sensors in an inaccessible location without proper tools could risk damaging the sensor or the wheel itself. Prioritizing safety and utilizing the appropriate tools are paramount. If you are uncertain about any aspect of the process, consult a qualified tire professional.
| Symptom | Possible Cause | Recommended Action |
|---|---|---|
| Slow leak | Damaged valve stem, faulty sensor, or small puncture | Inspect valve stem, use soap solution test, consider professional sensor evaluation. |
| Rapid air loss | Large puncture, severely damaged sensor, or major valve stem failure. | Immediate professional attention required. |
| Erratic TPMS readings | Low sensor battery, faulty sensor, or interference | Check sensor battery level using a TPMS tool; if necessary, replace the sensor or consult a technician. |
Replacing a Faulty TPMS Sensor (Step-by-Step Guide)
1. Identifying the Faulty Sensor
Before you begin, you’ll need to pinpoint which tire’s sensor is malfunctioning. Your vehicle’s dashboard will typically display a warning light and might even indicate the specific tire with a low pressure or faulty sensor. Consult your owner’s manual for precise instructions on interpreting your vehicle’s TPMS warning system. If the system doesn’t pinpoint the faulty sensor, you may need a TPMS diagnostic tool to identify the problematic sensor ID. This tool reads the sensor ID, allowing you to match it to the tire.
2. Gathering Necessary Tools and Materials
To successfully replace the sensor, gather the following: a new TPMS sensor (ensure it’s compatible with your vehicle’s make and model), a tire pressure gauge, a lug wrench, a jack, jack stands (crucial for safety!), wheel chocks, a valve core removal tool, and possibly a torque wrench (to tighten the lug nuts to the manufacturer’s specified torque). Having the right tools ensures a smooth and safe repair.
3. Preparing the Vehicle and Tire
Park your vehicle on a level, stable surface. Engage the parking brake firmly. Place wheel chocks behind the wheels opposite the one you’ll be working on. This prevents accidental rolling. Carefully jack up the vehicle, ensuring the jack is securely positioned under the designated jack point (consult your owner’s manual for the correct location). Then, use jack stands to safely support the vehicle’s weight, never rely solely on the jack.
4. Removing the Wheel
Once the vehicle is securely supported, carefully remove the lug nuts from the wheel. Loosen them slightly before jacking the car; this makes it easier to remove them completely once the wheel is off the ground. Keep the lug nuts together in a safe place to avoid losing them. Gently remove the wheel and set it aside in a safe location.
5. Removing the Faulty TPMS Sensor
Locate the TPMS sensor on the valve stem. Using the valve core removal tool, carefully remove the valve core. This releases any remaining pressure in the tire. Now, depending on the type of sensor, either unscrew the sensor from the valve stem or use the appropriate tool to remove it (some sensors require specific removal tools). Be gentle to avoid damaging the sensor or valve stem.
6. Installing the New TPMS Sensor
Before installing the new sensor, carefully examine the new sensor’s packaging and any accompanying instructions. These may include specific steps for activating or registering the sensor with your vehicle’s system. Some sensors may require programming with a dedicated TPMS tool to match the vehicle’s identification system. Others might automatically register after a short driving period; refer to your vehicle’s manual or the sensor’s documentation. If you are unsure if the sensor requires programming, consult a tire professional. Incorrect installation can lead to inaccurate readings and the continued activation of the TPMS warning light. The proper installation technique may differ based on the sensor type; some have a threaded base that screws directly onto the valve stem, while others require a specific fitting tool. Ensure the sensor is seated firmly and correctly, checking for any leaks around the valve stem. If a tool is necessary, use it correctly to avoid stripping the threads or damaging the sensor. If in doubt, consult the sensor’s instructions or a tire professional for assistance. Remember to carefully observe your vehicle’s manufacturer’s recommendations regarding sensor type and installation. Improper installation may void any warranty and could result in improper functionality or even damage to the system.
| Sensor Type | Installation Notes |
|---|---|
| Snap-in | Ensure it clicks securely into place. |
| Threaded | Tighten to the manufacturer’s specified torque (usually found in the sensor’s documentation). |
| Clamp-on | Ensure it’s tightly clamped around the valve stem. |
7. Reinstalling the Wheel and Tire
Carefully mount the tire back onto the wheel hub, ensuring it’s properly seated. Replace the lug nuts and tighten them hand-tight. Lower the vehicle using the jack. Then, using a torque wrench, tighten the lug nuts to the manufacturer’s recommended torque specification (found in your owner’s manual). This is crucial for wheel security and safety. Once tightened, double check that all the lug nuts are secure.
8. Inflate the Tire and Final Checks
Inflate the tire to the recommended pressure as specified on the tire sidewall or in your vehicle’s owner’s manual. Inspect the area around the valve stem for any signs of leaks. Drive a short distance and monitor your vehicle’s TPMS system. The warning light should extinguish once the new sensor is properly recognized and the tire pressure is correct. If the warning light persists, consult a tire professional.
Utilizing Diagnostic Tools for TPMS System Checks

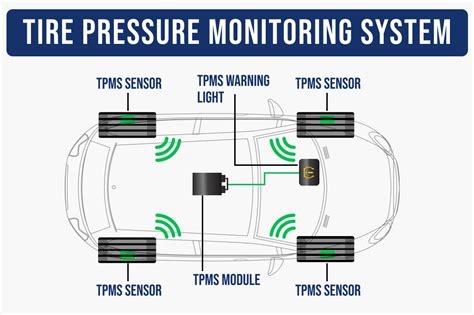

Understanding TPMS System Architecture
Before diving into diagnostic tools, it’s crucial to grasp the basics of how a Tire Pressure Monitoring System (TPMS) works. Most modern vehicles employ indirect TPMS, relying on the ABS wheel speed sensors to detect variations in wheel rotation speed indicative of low tire pressure. Direct TPMS, on the other hand, utilizes individual pressure sensors within each tire that transmit pressure data wirelessly to the vehicle’s onboard computer. Understanding which system your vehicle uses will guide your diagnostic approach.
Accessing TPMS Data with OBD-II Scanners
OBD-II scanners are readily available and offer a cost-effective way to access TPMS data. Many entry-level scanners will display basic TPMS information, such as low tire pressure warnings and sensor IDs. However, more advanced scanners provide detailed diagnostic trouble codes (DTCs) and allow you to perform sensor programming or relearning procedures. Always ensure your scanner is compatible with your vehicle’s year and make.
Specialized TPMS Scan Tools
For professional-level diagnostics and more comprehensive TPMS servicing, dedicated TPMS scan tools are invaluable. These tools often offer advanced features, including sensor activation, ID reading, and the ability to program new sensors. They’re particularly useful when dealing with complex issues such as faulty sensors or communication problems between the sensors and the vehicle’s ECU.
Interpreting TPMS Diagnostic Trouble Codes (DTCs)
TPMS DTCs provide crucial information for pinpointing the source of problems. A typical DTC might indicate a low battery in a specific sensor, a faulty sensor, or a communication error within the system. Understanding the meaning of these codes is key to effective troubleshooting. Consult your vehicle’s repair manual or use a comprehensive DTC lookup database for assistance.
Sensor Activation and Programming
Many TPMS systems require sensor activation or programming after replacement or tire rotations. This involves pairing the sensor with the vehicle’s ECU to ensure correct data transmission. The process typically involves using a TPMS scan tool to register the new sensor ID with the vehicle’s system. This process varies slightly depending on the vehicle and TPMS system.
Visual Inspection of TPMS Sensors
Don’t underestimate the value of a visual inspection. Carefully examine each sensor for any signs of damage, such as cracks, corrosion, or loose connections. Check the valve stems for leaks and ensure that the sensors are securely mounted in the valve stems. A simple visual check can often reveal obvious problems before resorting to more advanced diagnostics.
Understanding TPMS Sensor Battery Life and Replacement
TPMS sensors are battery-powered, and their lifespan varies depending on the manufacturer and usage. Generally, the battery can last for 5-10 years, but several factors affect battery life such as extreme temperature fluctuations and the frequency of tire rotations. When a sensor battery fails, it’s essential to replace the entire sensor, not just the battery. It’s impossible to change the battery without specialized equipment and even then it could compromise the sensor’s integrity. A faulty battery will trigger a DTC, often indicating a low battery voltage or a communication failure. Replacing the sensor completely ensures reliable operation and accurate readings. Attempting to replace only the battery is not recommended due to the intricate design and risk of causing further damage. Improper installation can also lead to incorrect pressure readings and sensor malfunction. The cost of a new sensor often outweighs the risk of attempting a battery replacement at home, and the long-term benefit of a correctly functioning sensor will more than compensate the expense. The manufacturer’s recommendations are often the best guide to ensure optimum sensor performance. Regularly checking for TPMS DTCs is essential for proactive maintenance.
| Symptom | Possible Cause | Recommended Action |
|---|---|---|
| Low Tire Pressure Warning | Actual low tire pressure, faulty sensor, or low sensor battery. | Check tire pressure, use a TPMS scan tool to diagnose sensor issues. |
| Intermittent Warning Lights | Communication issues, faulty sensor, or environmental interference. | Check for any damaged wiring, utilize a TPMS scan tool to detect DTCs. |
| No TPMS Data | Faulty sensor, ECU malfunction, or damaged wiring. | Thorough vehicle scan and sensor inspection is crucial. May need professional assistance. |
Programming and Relearning TPMS Sensors
Understanding TPMS Sensor IDs
Your tire pressure monitoring system (TPMS) relies on individual sensors within each tire. Each sensor has a unique identification number (ID). This ID is crucial because it allows the vehicle’s computer to differentiate between the four tires and accurately track their individual pressures. If a sensor is replaced or the system needs to be relearned, understanding sensor IDs is paramount. Without the correct IDs, the system won’t be able to accurately monitor tire pressure.
Accessing TPMS Sensor IDs
Accessing the individual sensor IDs can be done in a few ways. Some advanced scan tools specifically designed for TPMS systems can directly read the IDs. Others might require connecting to the vehicle’s OBD-II port and using specialized diagnostic software. Furthermore, some tire shops have the necessary equipment and expertise to quickly and efficiently retrieve these IDs. If you are unsure how to perform this step, it is always best to seek professional assistance to avoid potential damage or misinterpretation.
Methods for Relearning TPMS Sensors
There are generally two main approaches to relearning TPMS sensors: the static method and the dynamic method. The static method involves manually entering the sensor IDs into the vehicle’s computer system, often through the OBD-II port and appropriate software. The dynamic method, on the other hand, typically involves driving the vehicle at a certain speed for a specified duration. During this process, the vehicle’s computer automatically detects and registers the IDs of the sensors present in each tire.
The Static Method: Manual Sensor ID Input
The static method requires a scan tool capable of communicating with the TPMS module. Once connected, the tool allows the technician to enter the IDs of the new or replaced sensors directly into the vehicle’s system. This method is precise but requires specialized equipment and knowledge. Incorrect ID input can result in inaccurate readings or system errors. Therefore, meticulous attention to detail is needed during this procedure.
The Dynamic Method: Drive Cycle Relearn
The dynamic method is generally simpler and requires less specialized equipment. After new sensors are installed, the vehicle is driven according to the manufacturer’s specifications. This typically involves reaching a certain speed for a set period to allow the system to learn the sensor IDs. This method is convenient but may require multiple attempts if certain conditions are not met. Consult your vehicle’s owner’s manual for specific drive cycle instructions.
Using OBD-II Scan Tools for TPMS Service
Many OBD-II scan tools are now equipped with advanced capabilities to read and program TPMS sensors. These tools allow for both reading sensor IDs and performing both static and dynamic relearns. While these tools are readily available, it’s crucial to select a reliable and high-quality scanner to ensure accurate and reliable results. A low-quality tool might not have the necessary features, leading to potential difficulties and errors.
Troubleshooting Common TPMS Relearn Issues
Occasionally, the TPMS relearn process might encounter difficulties. Issues such as faulty sensors, incorrect ID entry, or interference from other electronic systems can hinder successful relearning. If the system fails to learn the new sensors after several attempts, a comprehensive check of all components, including sensor batteries, wiring, and the TPMS control module, should be carried out. This process often requires the expertise of a qualified technician equipped with diagnostic tools. Incorrect procedures during relearning might cause permanent damage to the TPMS system.
Choosing the Right TPMS Sensor
Selecting the correct replacement sensor is crucial for accurate readings and seamless integration with your vehicle’s system. Not all TPMS sensors are created equal; they vary in their frequency, design, and other crucial features. Using an incorrect sensor can lead to system errors, inaccurate readings, and potentially costly repairs. To avoid such issues, always refer to your vehicle’s owner’s manual or consult a qualified mechanic who can provide the right recommendations tailored to your specific vehicle model and year. A reputable auto parts store can help you find sensors compatible with your car. Always verify compatibility before purchasing or installing replacement TPMS sensors. It is not uncommon to need a sensor with a specific frequency to match the receiver in your car. Some sensors require programming to work and may not be plug-and-play.
| Sensor Type | Frequency (kHz) | Programming Method | Typical Compatibility |
|---|---|---|---|
| Standard Sensor | 315 or 433 | Vehicle-specific | Many vehicle makes and models |
| High-Precision Sensor | 434 | Vehicle-specific | Select premium vehicle makes and models |
| Sensor with Internal Battery | Variable | Vehicle-specific | Most modern vehicles |
Incorrect sensor selection can lead to system malfunctions that are difficult and expensive to fix. Always double-check compatibility with your vehicle’s specifications before purchasing or installing replacement sensors.
Post-Service System Verification and Troubleshooting
9. Addressing Persistent TPMS Issues: Advanced Troubleshooting
After completing standard TPMS service procedures, some systems might still display malfunction indicators or inaccurate pressure readings. This section delves into advanced troubleshooting techniques for resolving persistent issues. Remember, safety is paramount; if you’re uncomfortable performing these steps, consult a qualified tire technician.
9.1 Sensor Battery Replacement
Weak or failing sensor batteries are a common culprit behind TPMS malfunctions. While some sensors boast exceptionally long battery lives (up to 10 years), others may require earlier replacement. If a specific sensor consistently reports faulty readings or fails to transmit data, battery replacement is a crucial first step. Refer to your vehicle’s service manual or the sensor manufacturer’s instructions for proper battery replacement procedures. Note that some sensors are sealed units requiring specialized tools for battery access. Improper battery replacement can lead to sensor damage.
9.2 Sensor Re-Learning/Initialization
Even with functional sensors, the TPMS system might need to be re-learned or re-initialized after service. This process involves the vehicle’s computer system recognizing and associating the new sensor IDs (if sensors were replaced) or recalibrating existing sensors to their correct positions on the vehicle. Different vehicle makes and models have varying re-learning procedures, which are often detailed in the owner’s manual. Generally, this involves a specific sequence of steps involving the ignition switch, tire inflation, and potentially a scan tool.
9.3 Checking for Sensor Damage or Interference
Physical damage to the TPMS sensor (e.g., cracks, corrosion) can impair its functionality. Inspect each sensor carefully for any visible signs of damage. Additionally, strong electromagnetic interference from other vehicle components or external sources (rare) can disrupt sensor signals. In such cases, checking for wiring issues or damaged components near the sensor is necessary.
9.4 Utilizing Diagnostic Scan Tools
Professional-grade diagnostic scan tools are invaluable for advanced TPMS troubleshooting. These tools can retrieve specific diagnostic trouble codes (DTCs) from the TPMS module, providing targeted information about the problem’s source. These codes offer precise information, such as which sensor is malfunctioning or the nature of the communication error, making diagnosis significantly quicker and more efficient. The data provided by the scan tool will guide further investigation.
| Possible Issue | Likely Cause | Troubleshooting Step |
|---|---|---|
| Intermittent Sensor Readings | Weak battery, sensor damage, or interference | Check battery, inspect sensor, check for interference sources |
| No Sensor Readings | Faulty sensor, damaged wiring, or system malfunction | Inspect sensor and wiring, utilize scan tool for DTCs |
| Incorrect Pressure Readings | Sensor calibration error, faulty sensor | Re-learn/initialize the system, replace faulty sensor if necessary. |
Remember, always consult the vehicle’s service manual or a qualified mechanic if you encounter persistent TPMS problems beyond your expertise.
Servicing the Tire Pressure Monitoring System (TPMS)
Servicing a Tire Pressure Monitoring System (TPMS) involves a multifaceted approach encompassing both preventative maintenance and reactive repairs. Preventative maintenance focuses on ensuring the longevity and accuracy of the system through regular checks and proactive measures. This includes visually inspecting the sensors for any signs of damage, ensuring proper valve stem and sensor cap installation, and maintaining appropriate tire inflation pressures according to the vehicle manufacturer’s recommendations. Regular tire rotations also help to equalize wear and tear on the sensors.
Reactive repairs, on the other hand, address malfunctions within the TPMS. Diagnosing the source of a TPMS malfunction requires specialized equipment capable of reading sensor data and identifying faulty components. Common issues include low sensor battery life (requiring sensor replacement), damaged sensors (from impacts or corrosion), and faulty receiver units within the vehicle’s electronic control system. Repair or replacement typically involves the use of specialized TPMS tools to properly reset and relearn sensor IDs to the vehicle’s system. It’s crucial to note that improper servicing can lead to inaccurate readings and compromised safety.
For complex repairs or persistent malfunctions, seeking professional assistance from a qualified automotive technician is strongly recommended. These technicians possess the necessary diagnostic tools, expertise, and safety protocols to effectively diagnose and remedy TPMS problems, ensuring the system functions correctly and maintains optimal vehicle safety.
People Also Ask: Servicing Your Tire Pressure Monitoring System
How often should I service my TPMS?
Regular Maintenance
While the TPMS sensors themselves typically last for several years, regular maintenance is crucial. Visual inspection of the sensors and valve stems for damage should be part of your routine tire pressure checks (at least monthly, or before long trips). Ensuring correct tire inflation is paramount, as this directly affects TPMS accuracy and overall tire health. Following the recommended tire rotation schedule outlined in your vehicle’s owner’s manual will also contribute to even wear and longer sensor lifespan.
What happens if my TPMS sensor battery dies?
Sensor Battery Replacement
TPMS sensors contain batteries with limited lifespans (typically 5-10 years). When a battery fails, the sensor will cease to transmit data, resulting in a TPMS malfunction warning light. Replacement is necessary; this usually requires dismounting the tire and replacing the sensor itself. A qualified technician can easily handle this procedure, ensuring proper installation and system re-learning.
Can I replace my TPMS sensors myself?
DIY TPMS Sensor Replacement
While technically possible, replacing TPMS sensors independently is generally discouraged unless you have the necessary specialized tools and expertise. Improper installation can lead to sensor damage, inaccurate readings, or even damage to the tire or wheel. The process also involves re-learning the sensor IDs to the vehicle’s system, which often requires specialized scan tools. Incorrectly programmed sensors will continuously trigger warning lights.
My TPMS light is on, what should I do?
Troubleshooting a TPMS Warning Light
A TPMS warning light indicates a system malfunction. First, check your tire pressures. Low pressure is a common cause. If pressures are correct, the issue likely lies with the sensors or the system itself. It is highly recommended to have the system diagnosed by a qualified technician to pinpoint the problem and perform necessary repairs. Ignoring a TPMS warning light can compromise vehicle safety.
